Implementation of Function using CMOS
Rules for implementing CMOS technology

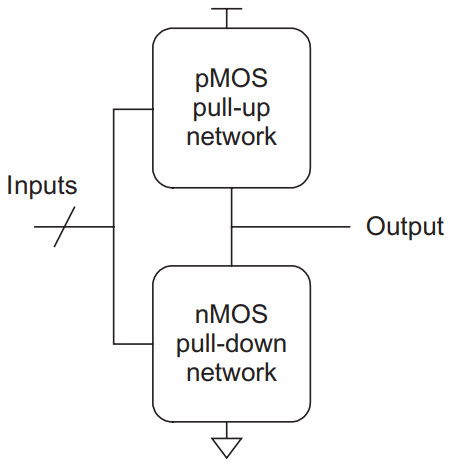

Pull-up network: The pull-up network is made up of PMOS transistors. It connects the output to the power supply voltage (Vdd) when the output needs to be in the high state.
Pull-down network: The pull-down network is made up of NMOS transistors. It connects the output to ground when the output needs to be in the low state.
 |
For (+) operation
PMOS – in series
NMOS – in parallel
For (.) Operation
1. PMOS – in parallel
2. NMOS – in series
NAND & NOR gate implementation
Implement booelan function
F = ab + bc + ac
